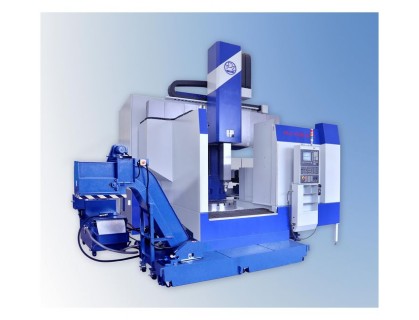

VLC 800 - 1600
Smallest produced vertical lathes from production of TDZ Turn s.r.o. Machine can be offered as "low cost" but also very well equiped.
Description
Vertical lathes with table 800 to 1600mm. Max. loading of the table 8000kg, max. swing diameter 2000mm. Crossrail movable and possible stop in all possible possitions. Many functions if machines equiped with "C" axes and live spindle (borring, taping, milling, grinding...).
| Item | Unit | VLC 800-1600 ATC | VLC 800-1600 ATC+C |
| Table diameter | mm | 800-1600 | 800-1600 |
| Max. swing diameter | mm | 1000-2000 | 1000-2000 |
| Max. work-piece height | mm | 700-1800 | 700-1800 |
| Max. work-piece weight | kg | až 8000 | až 8000 |
| Horizontal traverse (X) | mm | až -900;1200 | až -900;1200 |
| Vertical traverse (Z) | mm | až 1200 | až 1200 |
| Live tool rev - 1 speed | ot/min | x | 2~1200 |
| Live tool rev - 2 speed | ot/min | x | 1200~2400 |
| Magazine positions | 12 | 16 | |
| Spindle motor | kW | až 60 | až 60 |
| Live tools | kW | x | až 22,5 |
